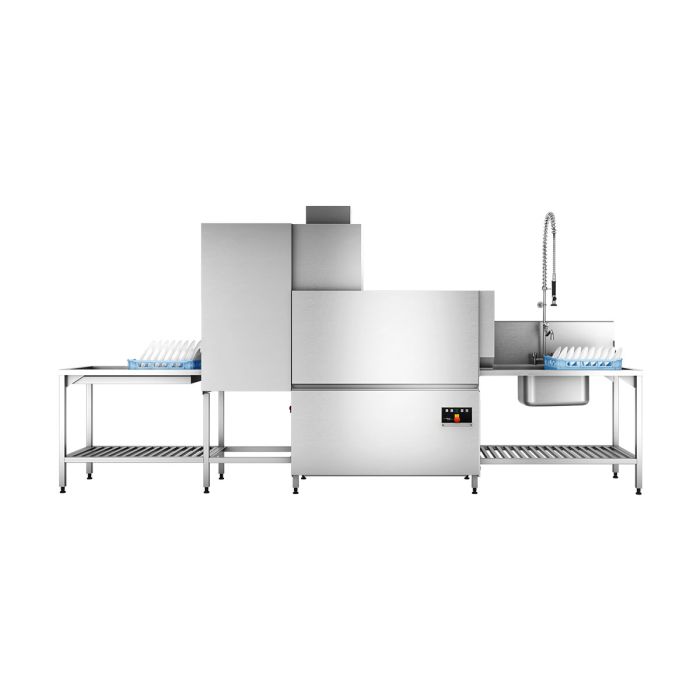

Hobart Ecomax Plus C815EA

Rack Dishwasher (with Pre Wash)

Hobart Ecomax Plus C815EA

Rack Dishwasher (with Pre Wash)

Dimensions (mm)

Height:
2150
Width:
1850
Depth:
775
£13,989.00 £16,786.80

12, 18 & 24 month interest free credit available on this dishwasher, to find out more CLICK HERE

The Ecomax Plus C815EA rack Conveyor Dishwasher with Pre Wash has low running costs and simple to use controls. This model is ideally designed for higher volume operations where a hood machine would not be sufficient, this range of higher capacity machines ensures a gleaming finish without fail.

Maximum Output

The Ecomax Plus C815EA offers all the advantages of the C815A with the welcome addition of a pre-wash capability increasing throughput to 150 racks per hour.

Pre-Wash

Of compact design, with the dual rinse system utilising a 4+3 wash arm configuration, the C815EA guarantees gleaming results every time. The pre-wash zone offers increased performance and incorporates a removable scraper tray enabling fast emptying of food soil. Incorporating simple to use electronic controls enabling constant monitoring of the operation.

Economical

The C815EA is economical to run and fully compliant it also has the option of a exhaust heat exchanger to recover up to 11Kw of waste energy. A class 'A' air gap prevents dirty water being back siphoned. Being of robust German design and build quality this unit is easy to service and maintain. A welcome addition to any larger commercial kitchen.

Features:

  • Up to 150 racks (2700 plates) per hour (500 x 500mm basket - 18 plates)
  • Pre-wash zone features a removable scrapper tray - enables fast and efficient emptying of food soil
  • Double skinned with fully insulated door
  • 440mm loading height
  • Compact design
  • Low running costs
  • Integral Class A Airgap – allows direct connection to mains and complies with all water authority bye-laws
  • Hot or cold soft water connection recommended
  • Full width counter balanced panoramic door – allows easy access for cleaning
  • CONTACT+ ‘4 + 3‘ wash arm configuration for maximum wash coverage – ensures thorough and consistent cleaning performance
  • Dual rinse system as standard – delivers excellent rinsing results and economy using just 180ltrs/hr.
  • Simple operation for filling, conveyor start and draining -easy to use and understand
  • Continuous digital display of wash & rinse temperatures – correct operation can be checked at a glance
  • Wash tank is protected by full width strainer, with separate soil basket
  • Stainless steel wash pump housing and impellor gives maximum reliability
  • Rinse booster pump
  • This unit does not have an in-built softener
  • Electronic soft touch controls - simple and easy to use with constant temperature display and access for parameter adjustments

Spec:

  • Wash Temperature - 60 Degrees
  • Rinse Temperature - 82 Degrees
  • Wash Tank Capacity - 105 litres
  • Water Consumption/cycle - 180 litres/hr
  • Electrical Loading - 400/50/3 Hot fill 22.3kw (50 Amps) or Cold fill 29.8kw (63 Amps) - To be specified at time of order
  • Water Pressure Req. - Cold or hot feed, 1.5-6 BAR (not to exceed 60°)
  • Useable Loading Height - 440 (mm)
  • Dimensions - 2150 (h) x 1850 (w) x 775 (d) mm

Warranty - 1 Year Parts and Labour

*Tabling not included, if you wish to add tabling please click here to view the options or request a site survey
